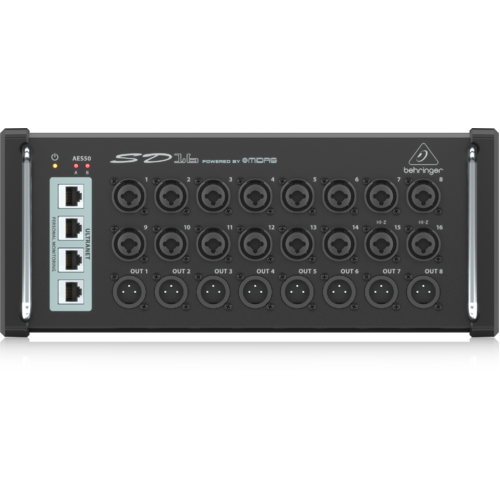

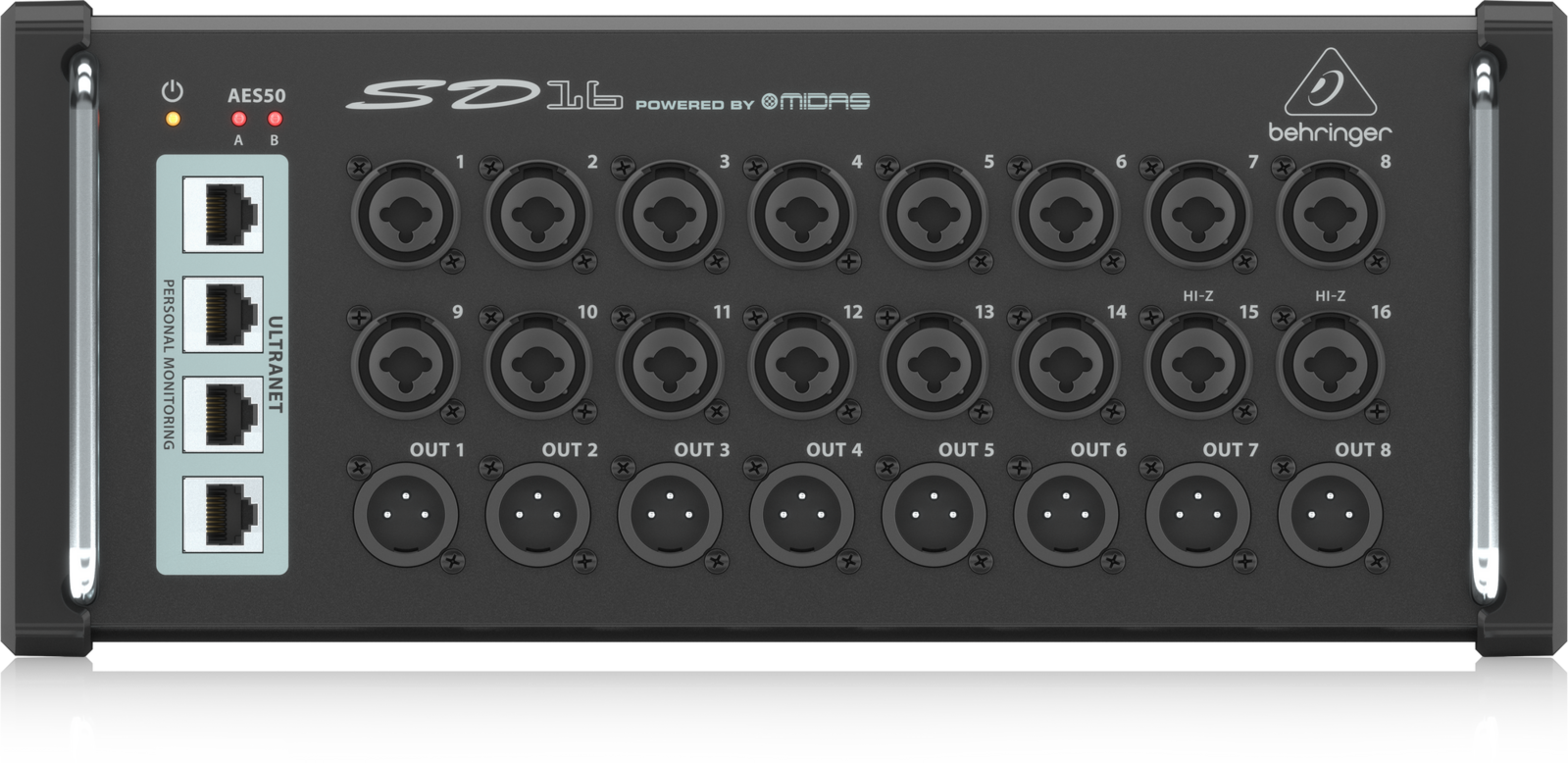

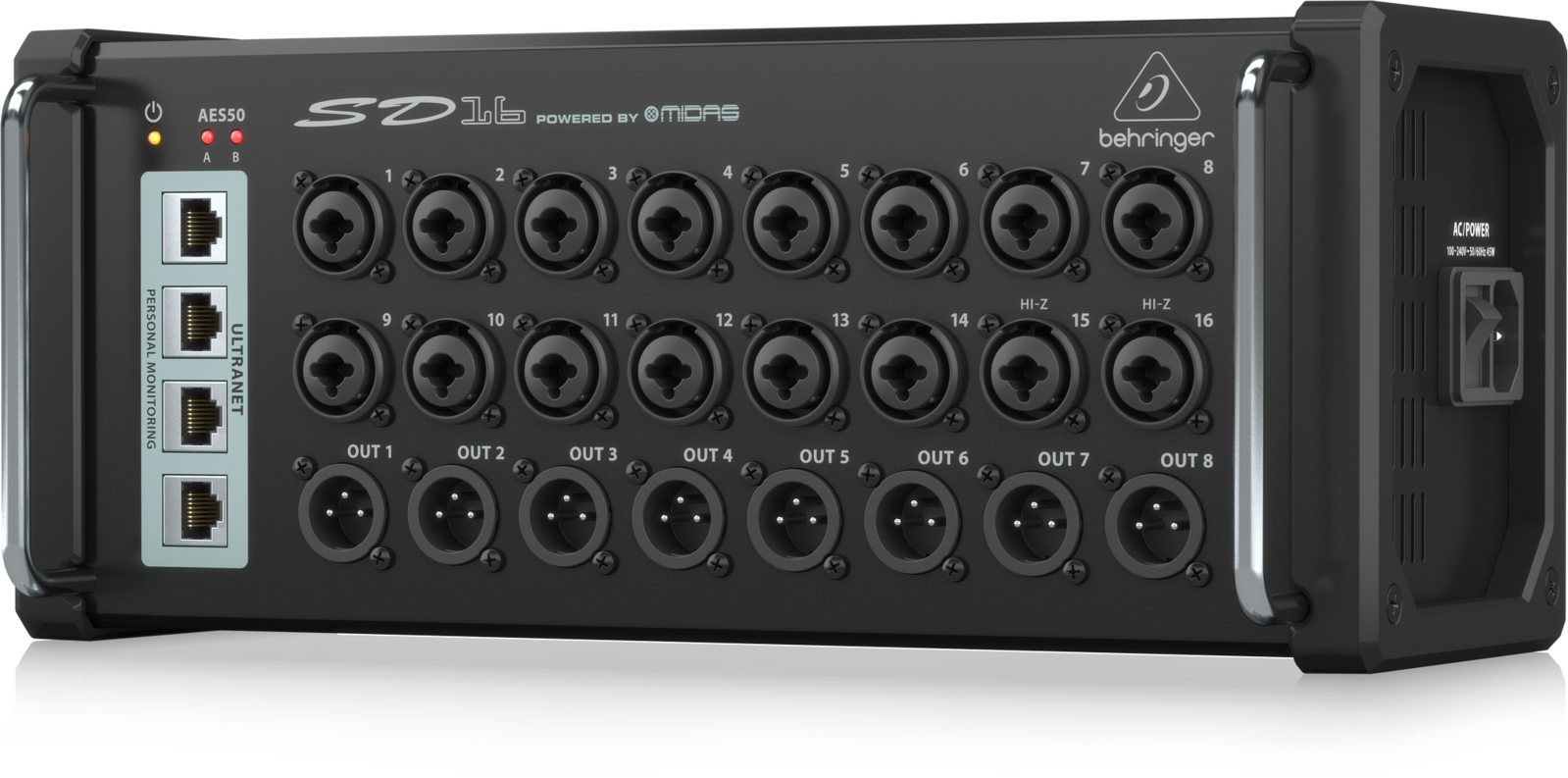

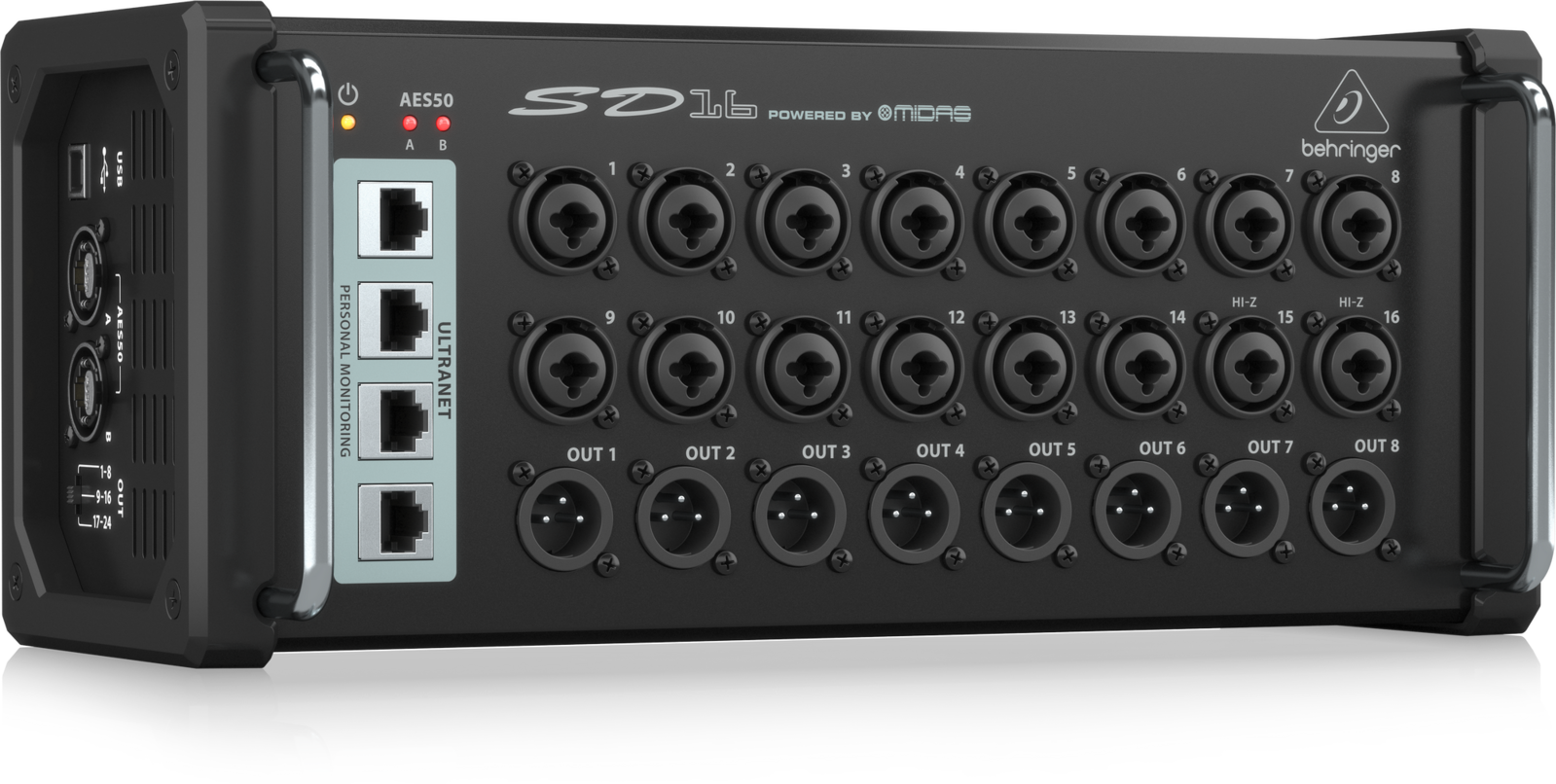

Digital mixing has revolutionized virtually everything in the live- entertainment production workflow. Now we’ve come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the ultra-cool and ultra- affordable SD16 Stage Box! The SD16 provides 16 MIDAS-designed remote- controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 4-port ULTRANET distribution hub for direct connection to our P16-M personal monitor mixers – without any additional hardware required. Plus, the SD16 is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them.

The best part – all it takes is a single shielded CAT5e cable per stage box (up to 330 ft / 100 m length). And If you need more inputs, or just want to keep your cable runs short and tidy, putting an SD16 at stage front and another behind the drum riser gives you an additional 16 inputs for drum and guitar/bass amp mic’ing. When used as part of a complete X32 system, as many as three SD16 Stage Boxes can be cascaded via the built-in AES50 ports to provide up to 48 bidirectional inputs and 24 balanced XLR outputs.

An onboard ULTRANET distribution hub provides power and 16 channels of audio to 4 BEHRINGER POWERPLAY P16-M personal monitor mixers per SD16, all via inexpensive shielded CAT5e cabling – and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD16 also features a USB port for fast and easy system updates via your PC.

Features:

16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality

8 analog, servo-balanced XLR outputs

AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency

4-port ULTRANET distribution hub for powered connection of 4 BEHRINGER P16-M personal monitoring mixers

Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability

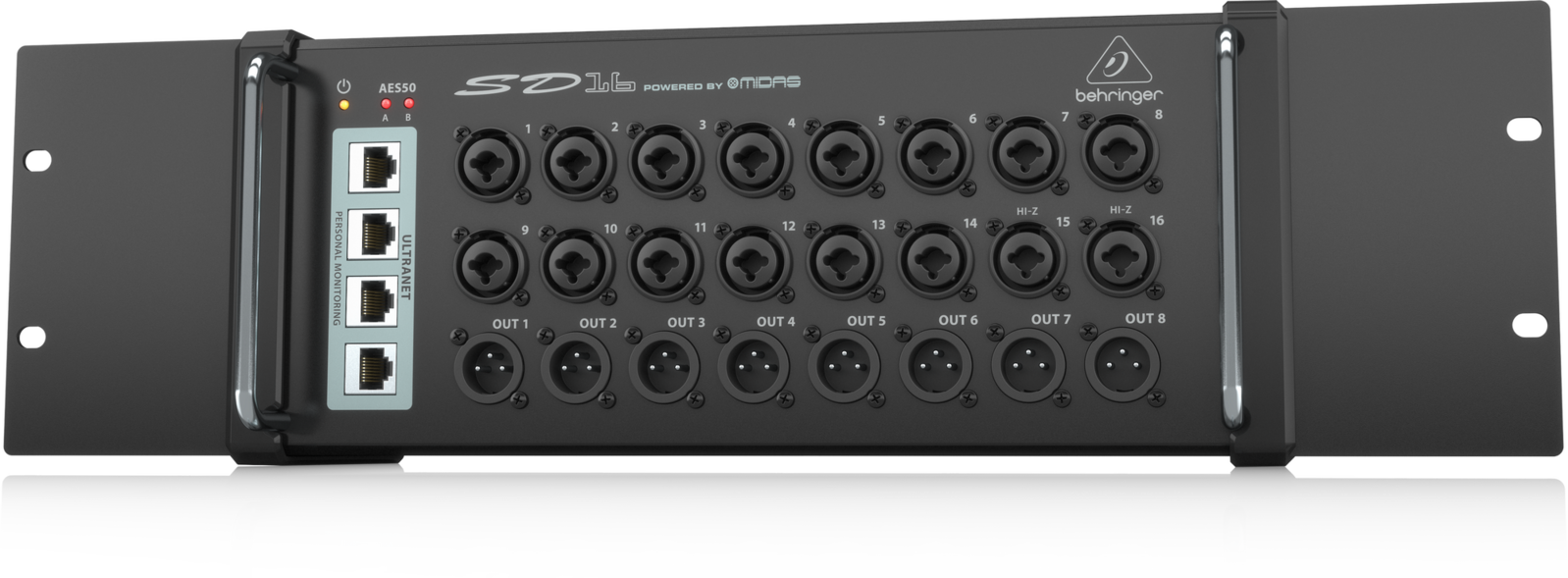

Rack ears and protection bumpers included for installed and mobile applications

Dual AES50 ports for cascading multiple units—no merger or router required

Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

USB connector for system updates via PC

Ultra-compact and roadworthy, all-steel chassis

Designed and engineered in Germany
