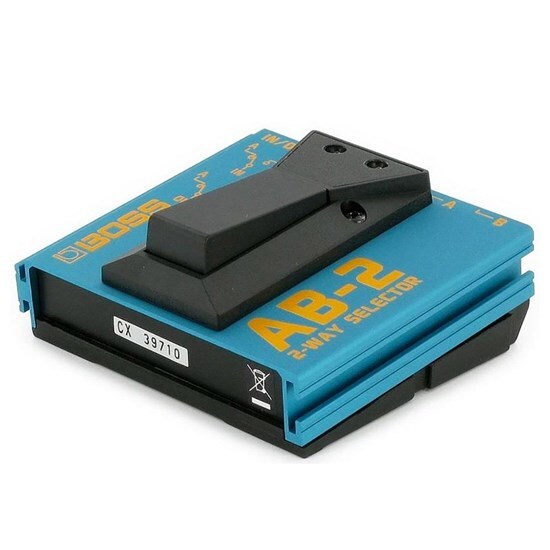

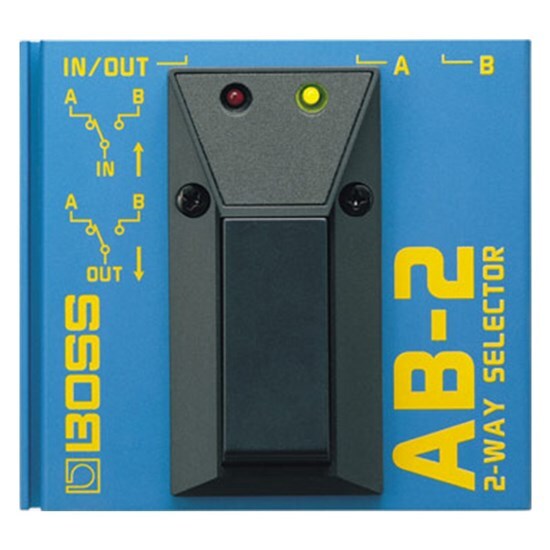

The BOSS AB-2 is a 2-way selector that makes changing inputs or outputs easy. One stomp is all it takes to instantly switch between two guitars or effects setups, change amplifiers or switch between an amp and tuner. Rock-solid BOSS construction ensures the AB-2 will stand the test of time.

Specifications

Nominal Input Level -20 dBu

Nominal output Level -20 dBu

Control Pedal Indicators A (red), B (yellow)

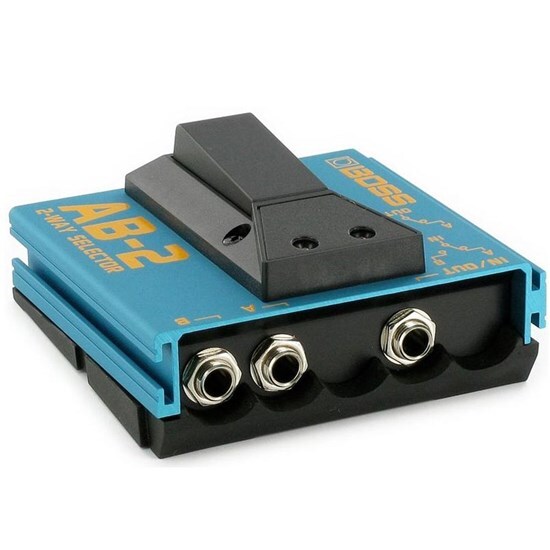

Connectors A jack, B jack, IN/OUT jack

Current Draw 5 mA or less
Expected battery life under continuous use: Carbon: 100 hours
This figure will vary depending on the actual conditions of use.

Power Supply Dry Battery [R03/LR03 (AAA) type] x 2

Accessories Owner's Manual, Dry Battery [R03/LR03 (AAA) type] x 2, Number Sticker

Size and Weight

Width 96 mm

Depth 90 mm

Height 43 mm

Weight 240 g
