With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

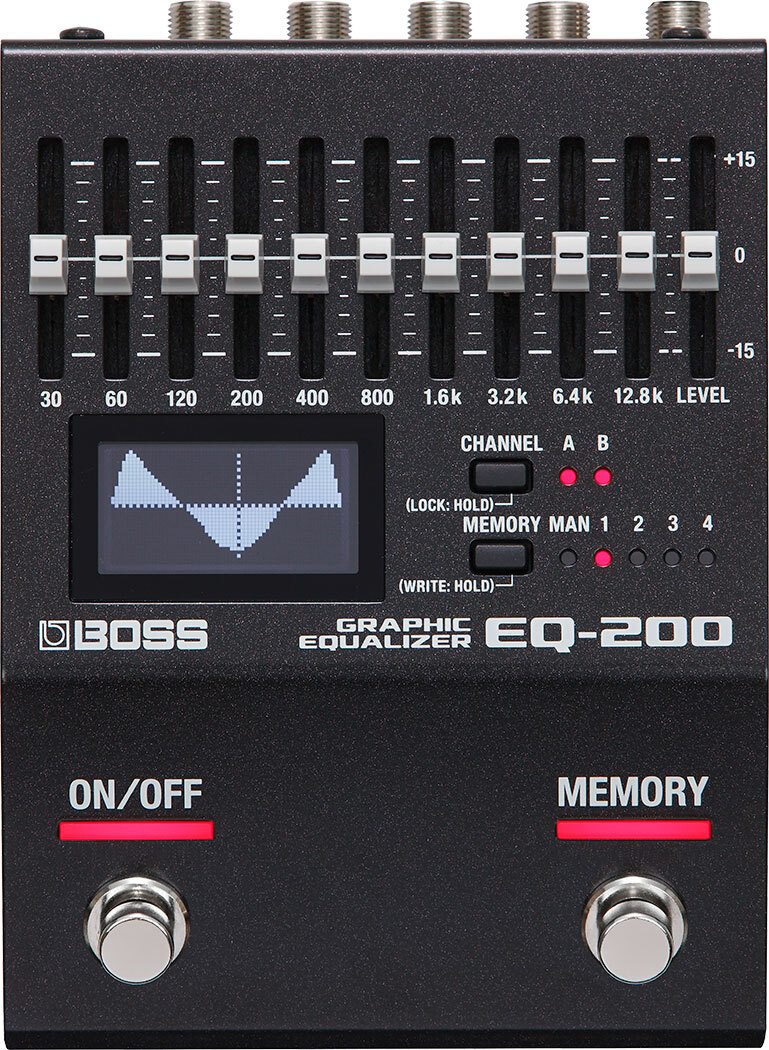

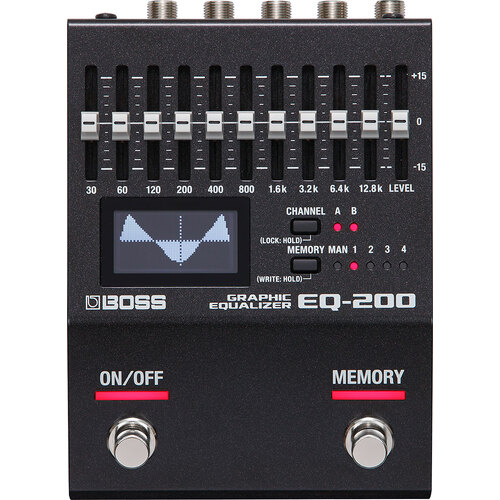

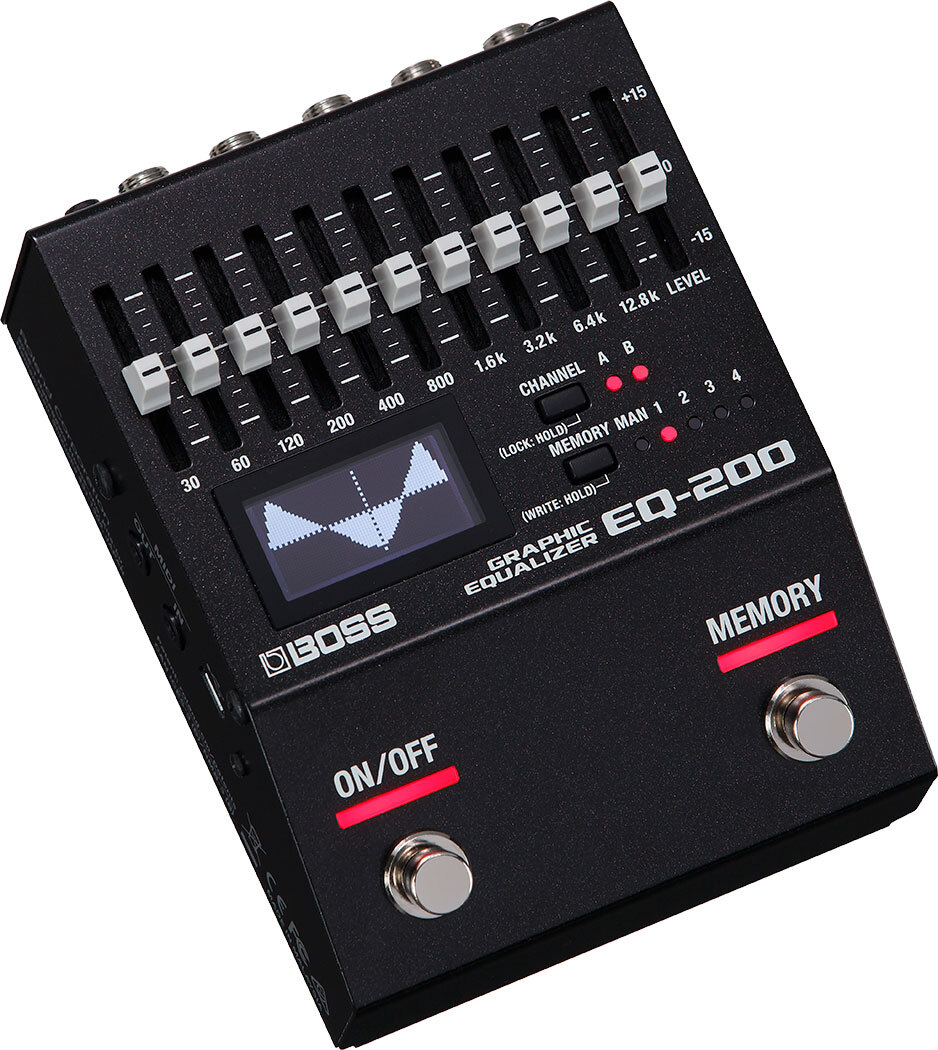

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments.

Features:

Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate

Dual 10-band EQs that can be used in stereo, parallel, or series

Insert function for processing external effects with pre and/or post tone shaping

Three different range settings: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz

15 dB boost/cut on each band, plus overall level control for each channel

Stereo link function for operating both EQ channels together

Intuitive interface with hands-on sliders and graphic EQ display

Access 128 user setups from the panel or MIDI program change

Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button

Panel Lock function disables controls to prevent unwanted changes

Two onboard footswitches with customizable assignments

Support for expanded control via external footswitches, an expression pedal, or MIDI

Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)

Micro USB jack for firmware updates

Runs on PSA-series AC adaptor or three AA-size batteries
