Description

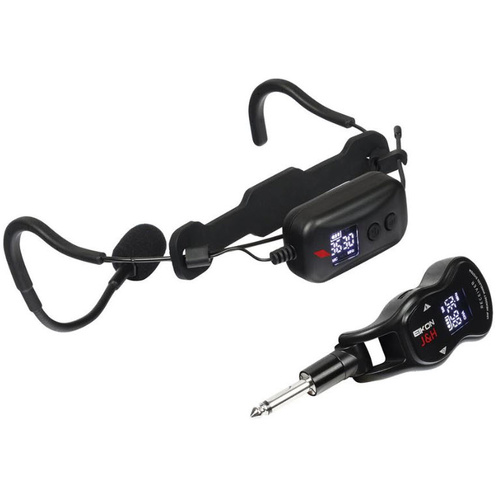

EIKON J&H Wireless Headset system
The EKJ&H is a quartz-controlled UHF headset wireless microphone system that provides reliable, high-quality signal transmission.

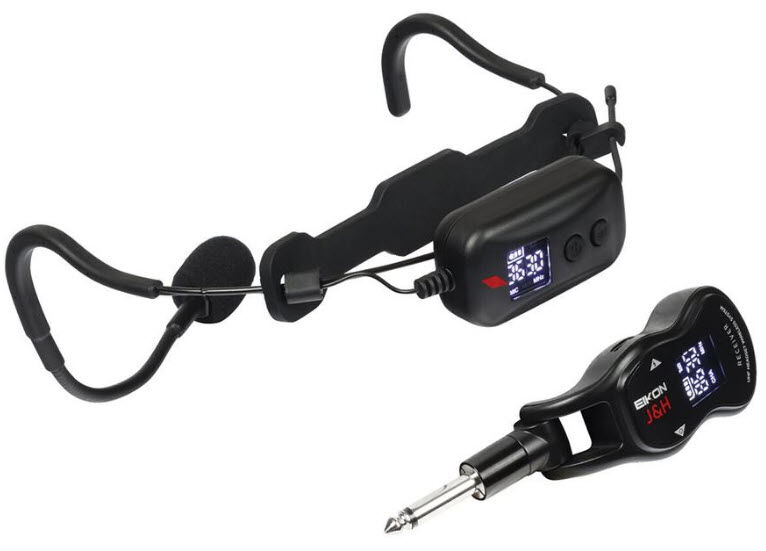

The EKJ&H comes with 3 units: the EKJ&H headset transmitter, the EKJ&H compact “connector-style” receiver, and a USB to USB-C charging cable.

50 frequency channels are available in 512 – 541 MHz, allowing the system to be used with other wireless equipment simultaneously.

UHF 512 – 541 MHz frequency band

Quartz locked modulation mode

Up to 20 meters range

Built in 3.7V/500mA lithium battery

5V USB-C charging cable included

Up to 4 hours autonomy

Up to 6 systems usable in the same location

TECHNICAL SPECIFICATIONS
EKJ&H – UHF PLL Headset Transmitter

RF Channels – 50 frequency presets

RF Frequency Band – UHF: 512 – 541 MHz

RF Frequency Stability – ±0,002%

RF Oscillation Mode – Quartz locked

RF Modulation Type – Wideband FM Stereo

RF Output Power – 10mW

Sub-harmonic – < 40 dB

Operating current – 130 mA

Operating Time – 3 to 5 hrs (depending on use conditions)

Operating Power Supply – 3.7 V / 500 mA – built-in Lithium battery

Charging mode – USB charging 5V – type USB-C connector

Charging time – 4 hours

Weight – 0.50 Kg

EKJ&H –UHF PLL Receiver

RF Channels – 50 frequency presets

RF Frequency Band – UHF: 512 – 541 MHz

RF Frequency Stability – ±0,005%

RF Oscillation Mode – Quartz locked

RF Modulation Type – Wideband FM Stereo

RF Receiving Sensitivity – < -95 dBm

RF Receiving range – 20 meters depending on used band conditions

Audio dynamic range – 106 dBm

THD Distortion – 90 dBA

Audio output connector – 6.3 mm Mono Jack

Output Power Max (continuous) – 400 mW

Operating current – 80 mA

Operating Time – 5 hours

Operating Power Supply – 3.7 V / 500 mA – built-in Lithium battery

Charging mode – USB charging 5V – type USB mini connector

Charging time – 3 hours

Weight – 0.05 Kg
