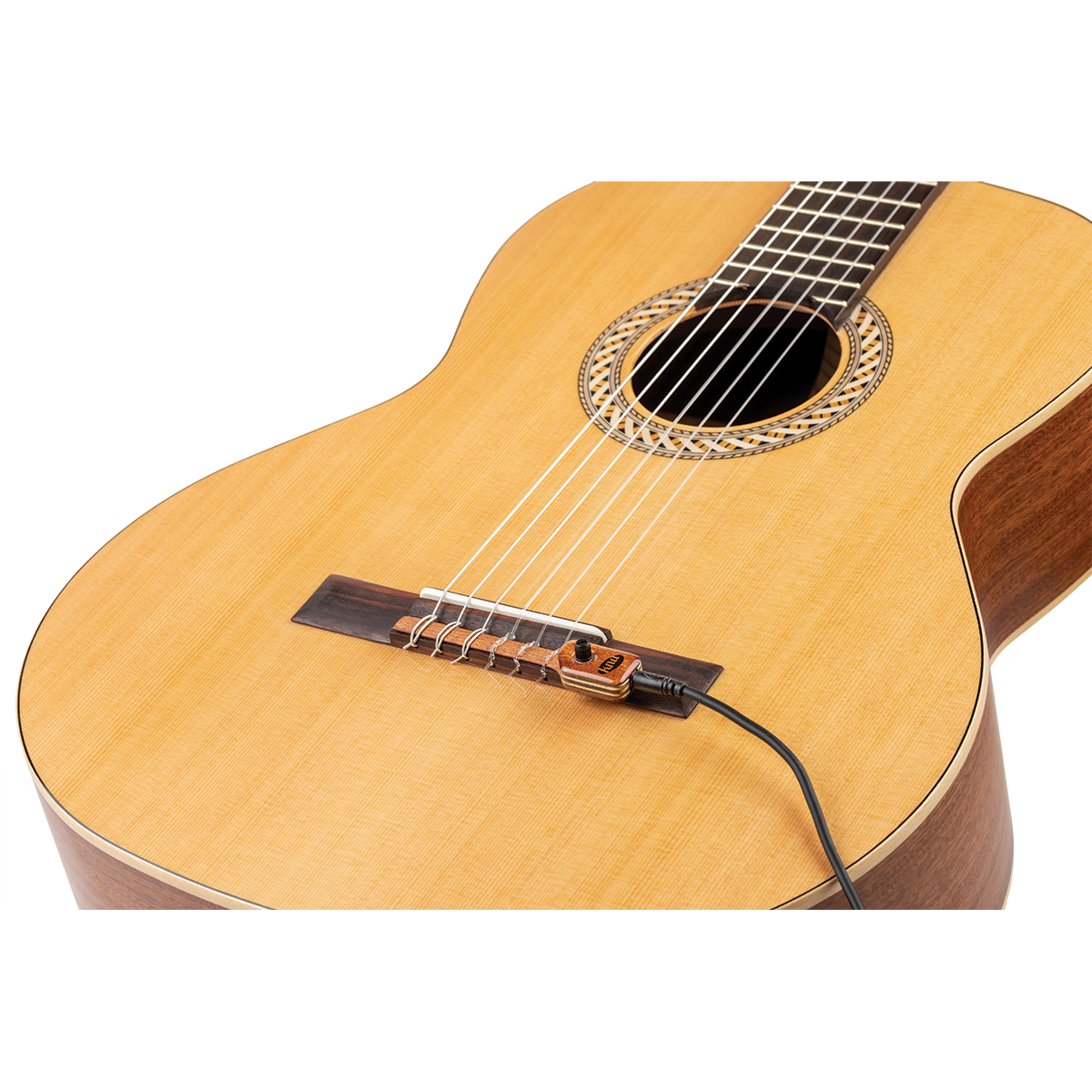

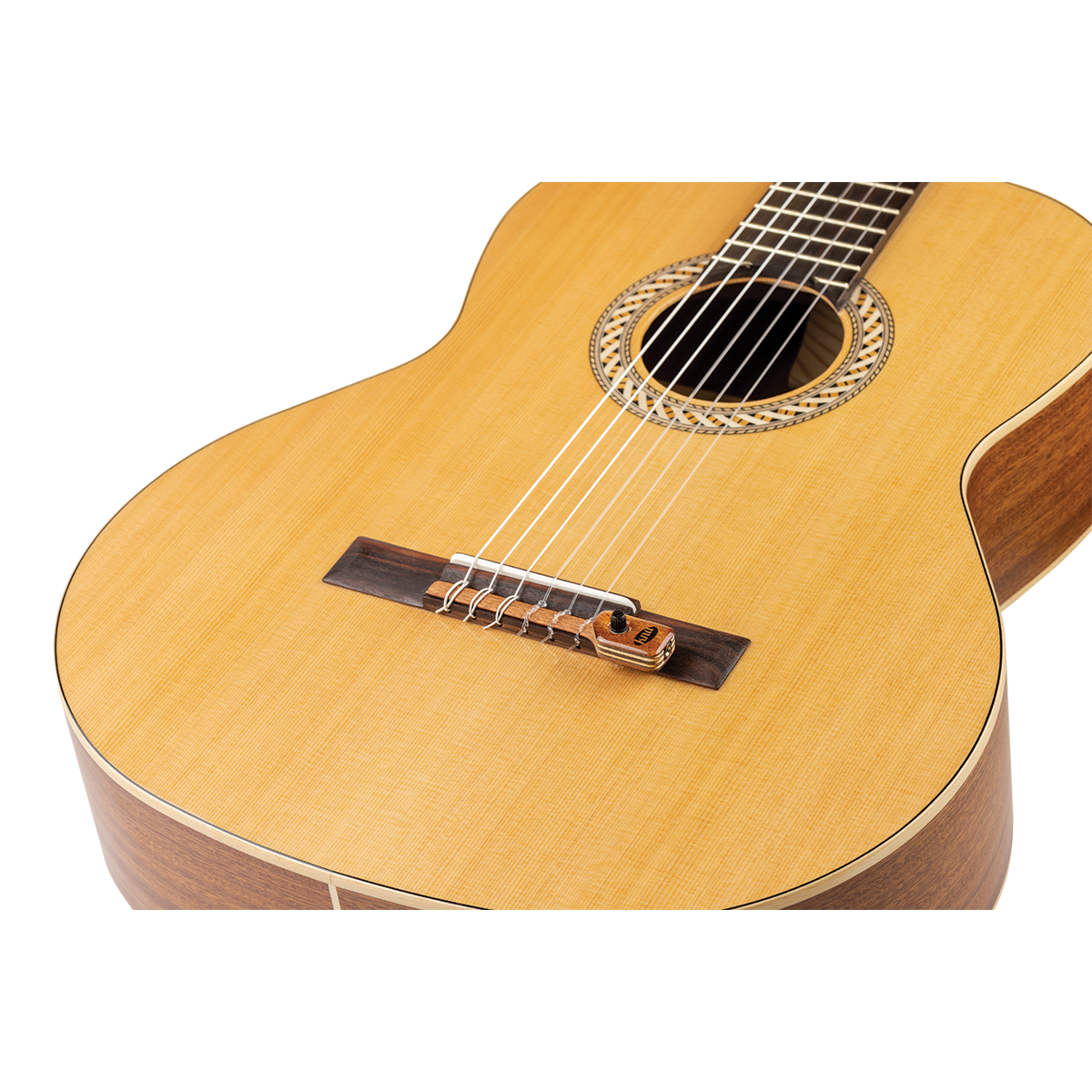

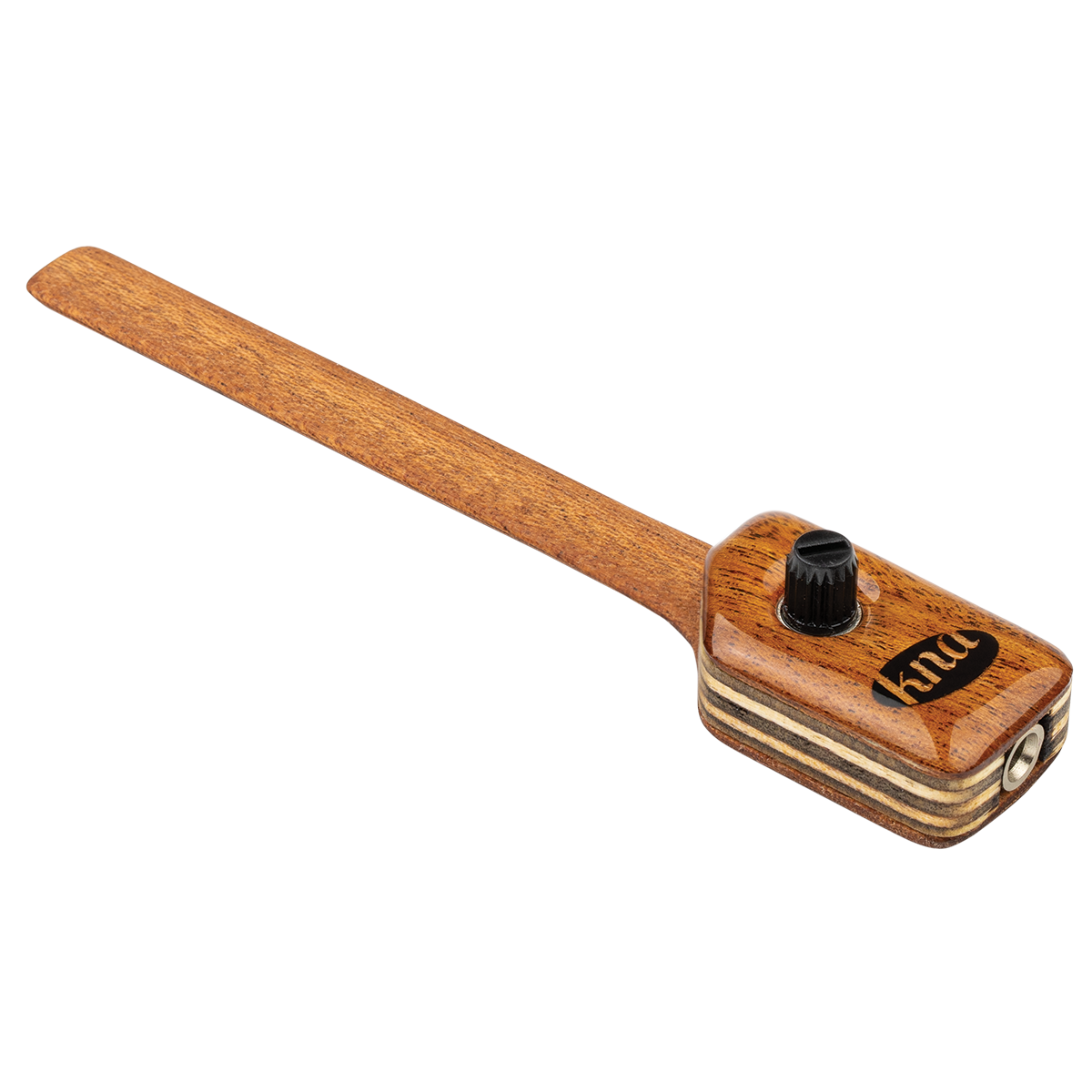

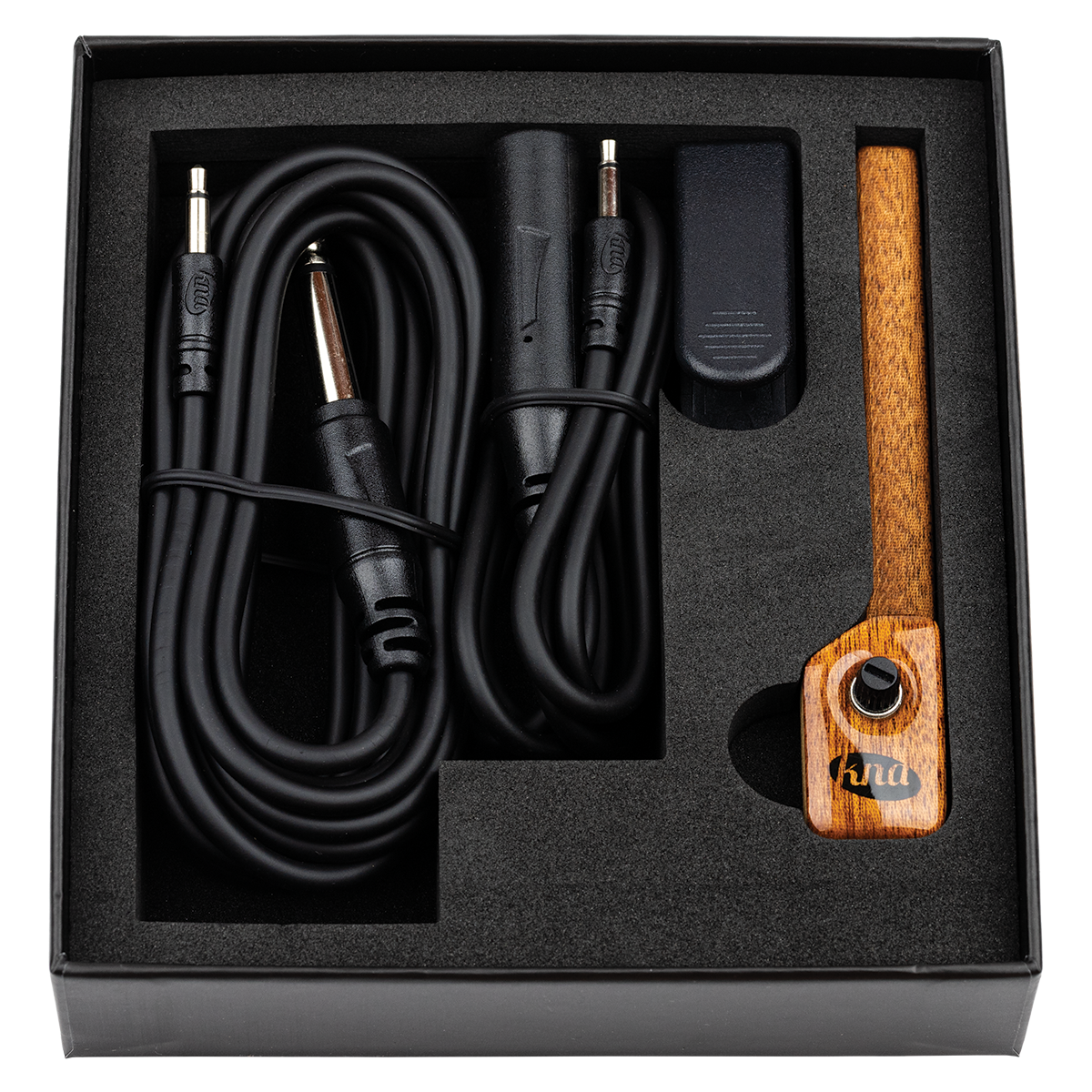

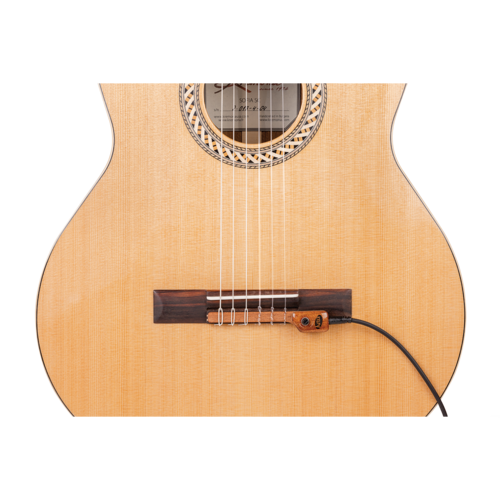

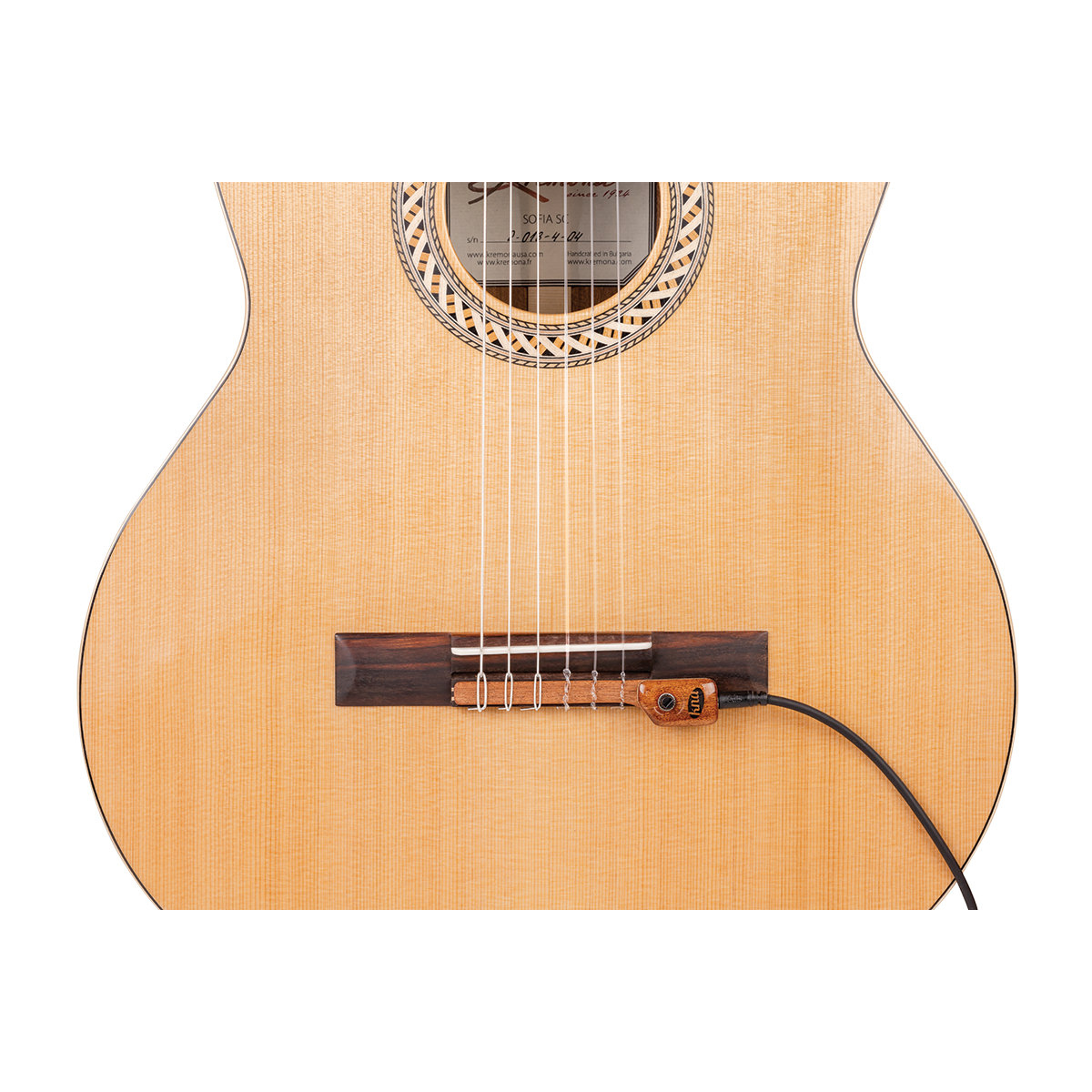

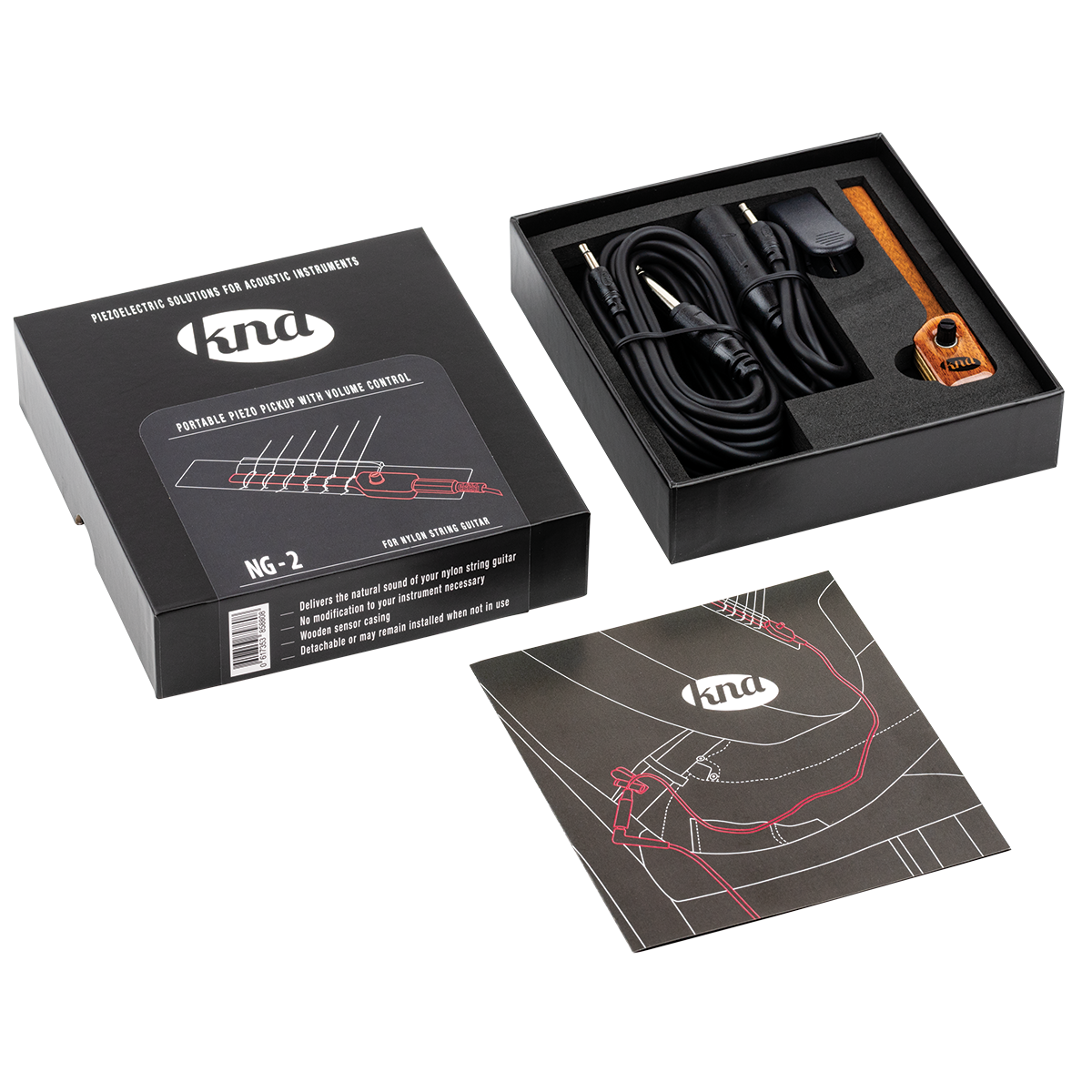

With onboard volume control, NG-2 is a versatile choice for guitarists who need a piezo guitar pickup to amplify the natural sound of their instrument. Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound, and does it without an installation that requires modification. Unlike other guitar pickups, NG-2 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings. NG-2 is a passive classical guitar piezo pickup system designed to work flawlessly with your favorite acoustic amplifier or preamp. Two cables are included – plug in directly with the 9-ft. 1/8" to 1/4" cable, or use the 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with the instrument cable of your choice.

SPECIFICATIONS:

Weight                         7.5g. / 0.26oz

Overall length.             105.5mm / 4.15"

Height / jack housing   16.3mm / 0.64"

Active element measurements:

Length.                         73mm / 2.87"

Width                            9.6mm / 0.38"

Thickness                     2mm ± 0.05mm

                                     0.079" ± 0.002"

Wood                            Mahogany

Maximum Impedance   500 Ω

Cables:

Jumper cable with safety clip   1meter / 3'

Amp cable                                3meter / 9'
