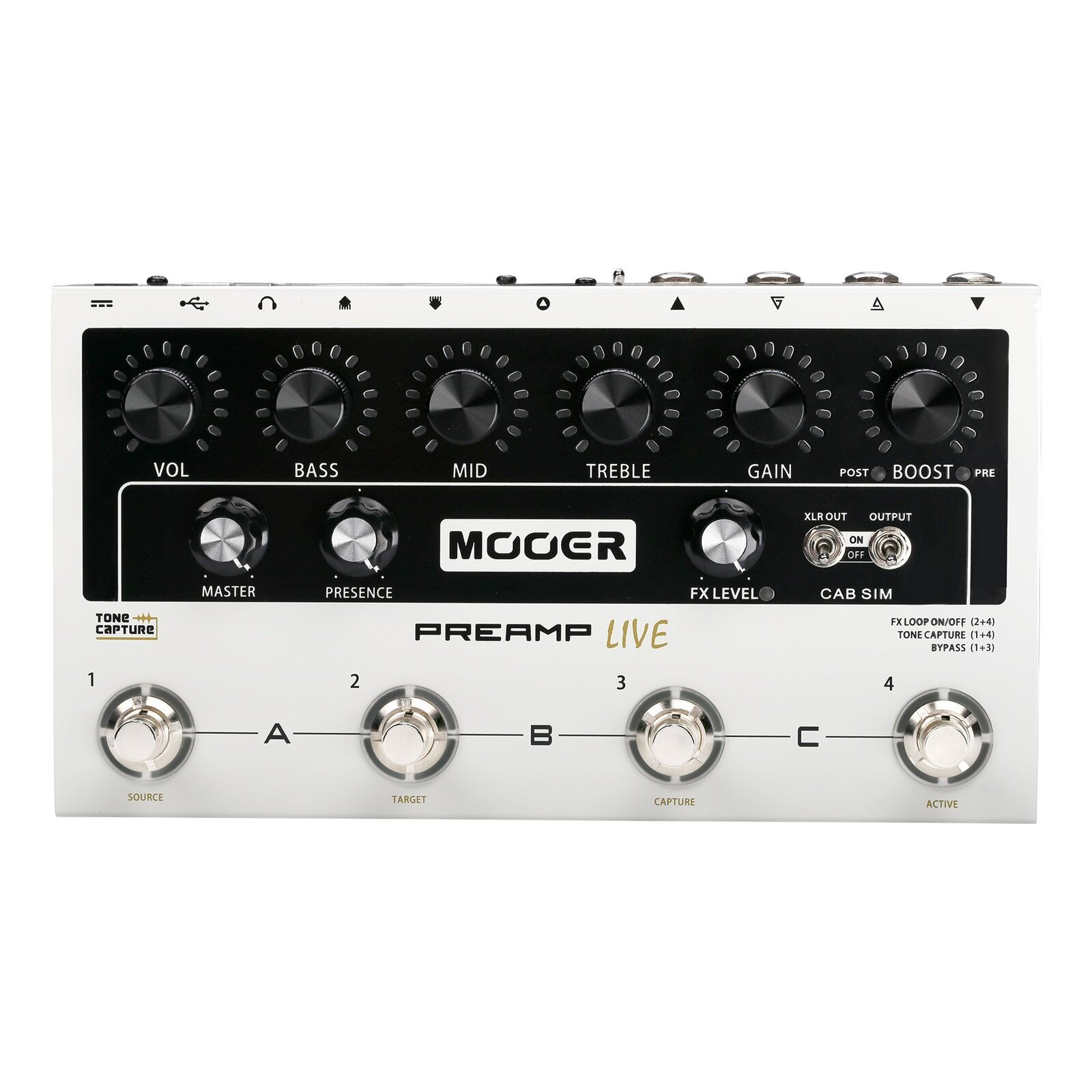

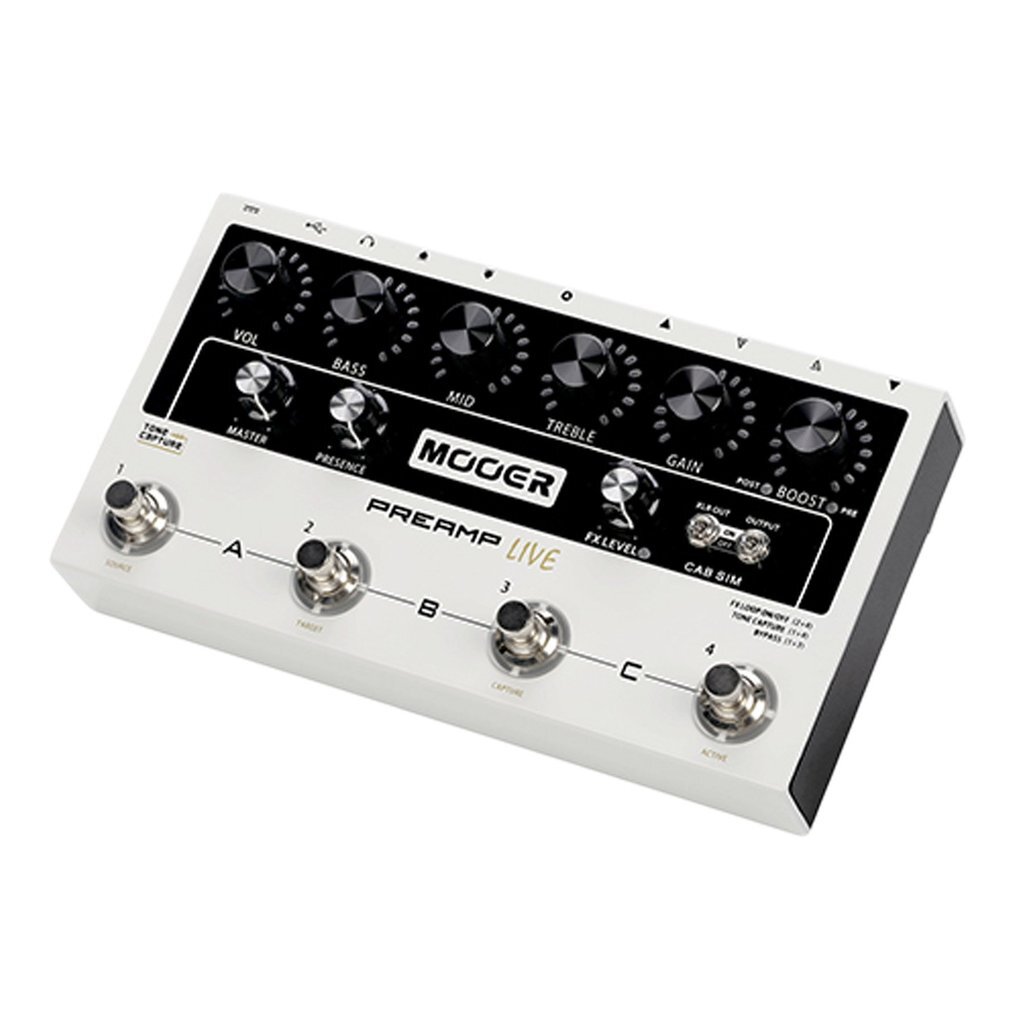

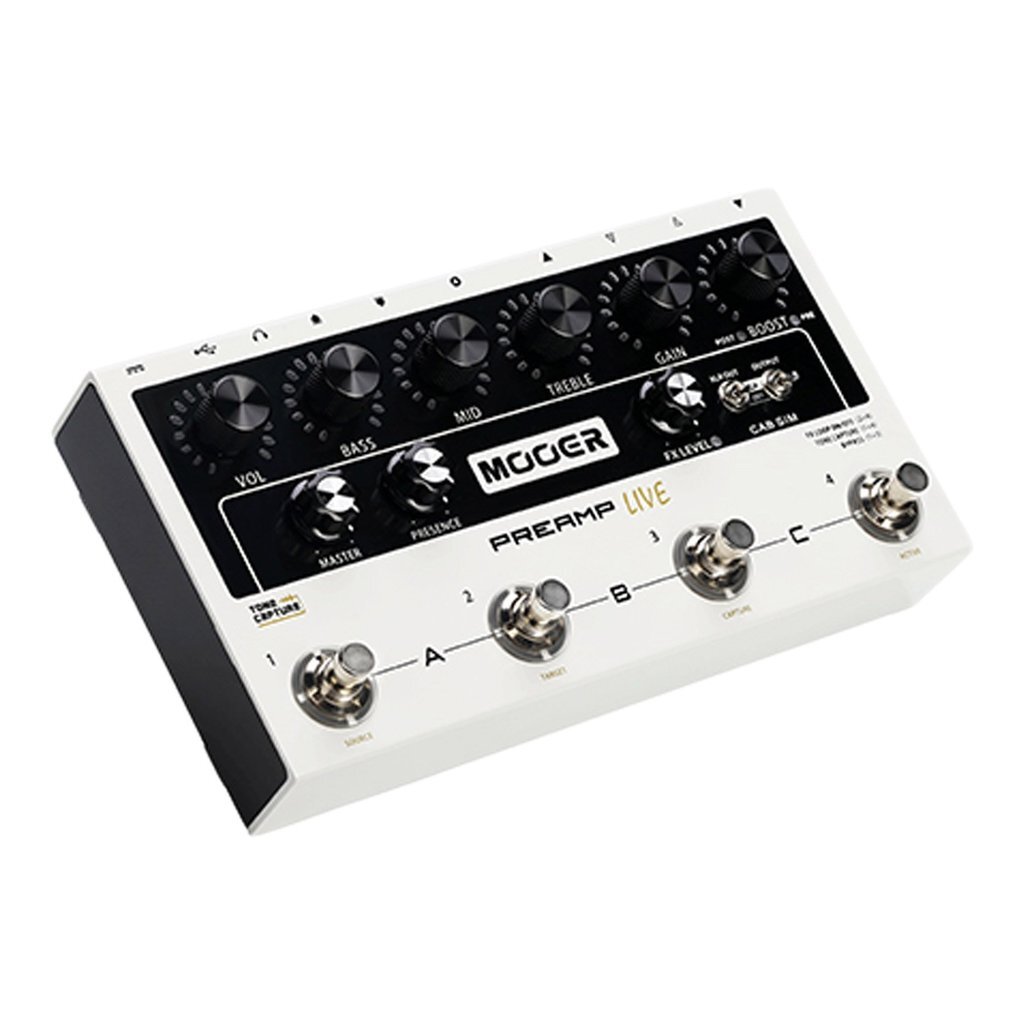

The Mooer MEP-PALIVE Preamp Live is a compact four channel preamp with cabinet simulation. Preamp Live has been designed from the ground up to be the ultimate digital preamp modeller for use in a live situation. Every control feature has been carefully thought out to be intuitive and provide the best experience for live performance.

Preamp Live provides a wide array of different amp tones right at your feet. It lets you select and carry 12 independent preamp channels of your choice, from a selection of 50 models available within the supporting software and mobile apps.

Added to each of the 12 preamp channels is a dual position booster, adjustable pre and post noise gates, a fully programmable effects loop with different modes, full channel switching control, MIDI IN and OUT, dedicated headphone connection, multiple outputs with optional cab simulation and IR loading capabilities.

Ever wanted to get UK overdrive from your F style amp? Or sparkling, spanky cleans from your M style amp? The effects loop in Preamp Live has a unique A/B mode which lets you use your amplifiers analogue preamp along with the digital models. This effectively expands the tonal palette of your amplifier without the need for an expensive, complicated switching device.

Features:

Contains 12 independent preamp channels with intuitive, familiar switching controls

Pre/Post BOOSTER and adjustable Pre/Post noise gates for each channel

Easily accessible global controls for fast setup in different live situations

Optional independent speaker cab sim for each output

IR loading via the supporting software and mobile apps

Fully programmable effects loop with serial and A/B modes. For use with external effects or combining with your head or combo's own preamp using the 4-cable method

TONE CAPTURE for sampling your real amplifiers tonal characteristics and creating new digital preamp models

Dedicated headphone output for use as a stand-alone practice unit

Fully mappable MIDI IN and MIDI OUT for integration with other equipment

USB and Bluetooth for connecting to PC, MAC and MOBILE APP for deep editing and amp selection

Specs:

Preamp Channels: 12

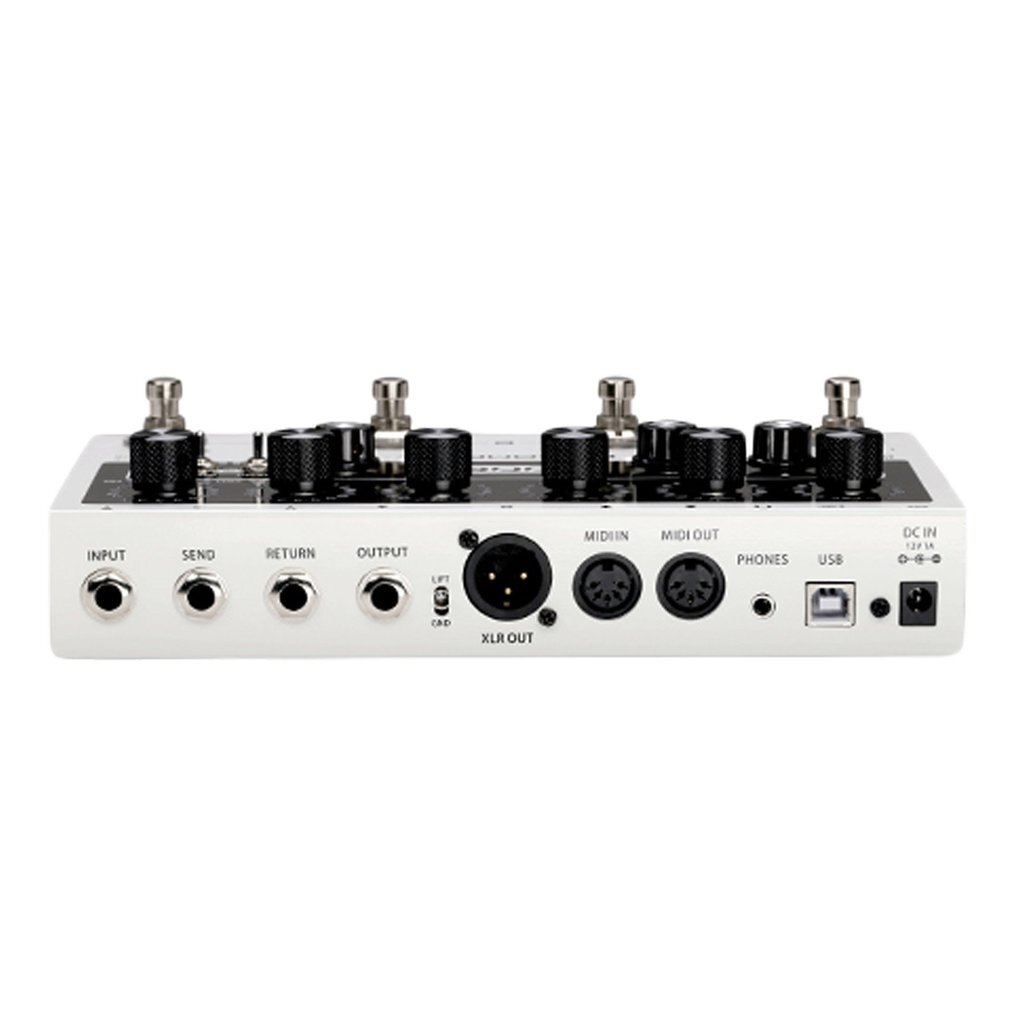

Input: 1/4'' mono audio jack (impedance 500k)

Outputs: 1 x 1/4'' mono audio jack (impedance100Ω)

Effects Send: 1/4'' mono audio jack (impedance100Ω)

Effects Return: 1/4'' mono audio jack (impedance 500k)

USB: Type-B Female Connector

Sampling accuracy: 24bit

Signal to noise ratio: 103dB

Effects Loop: Mode 1 Serial ~ Mode 2 A/B

MIDI IN & OUT: 5 pin DIN connector

Sampling rate: 88.2KHz

Power requirements: 9V-12V DC 1A

Dimensions: 230mm x 130mm x 54mm

Weight: 1.18Kg

Accessories: 1 x USB Cable
