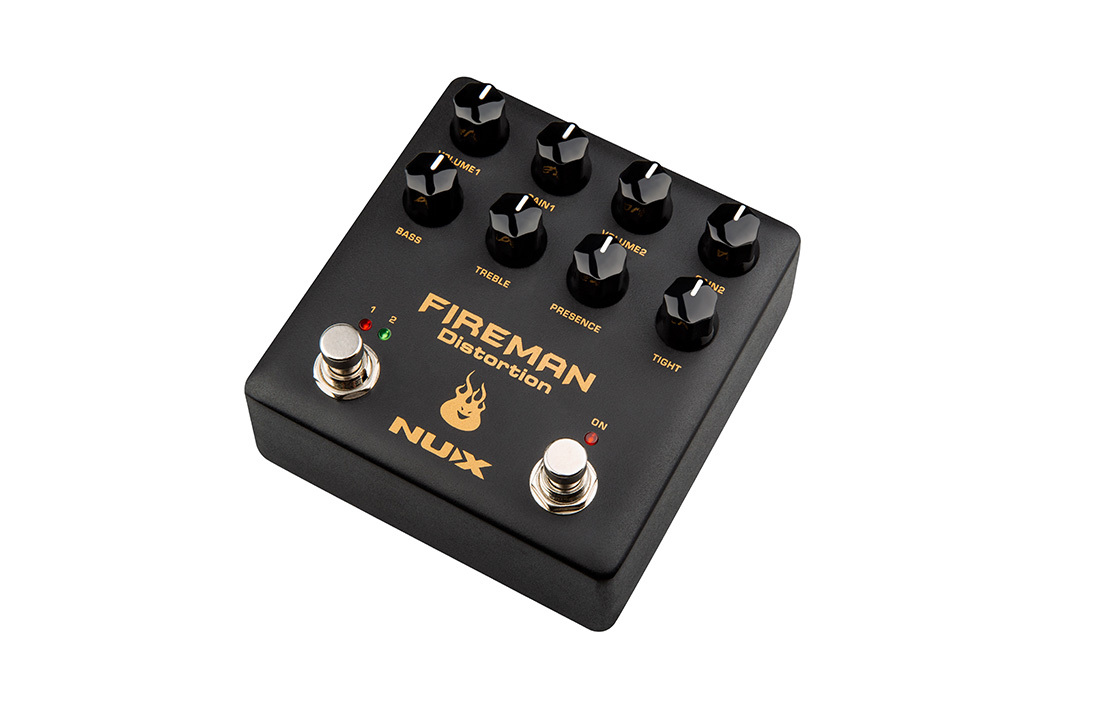

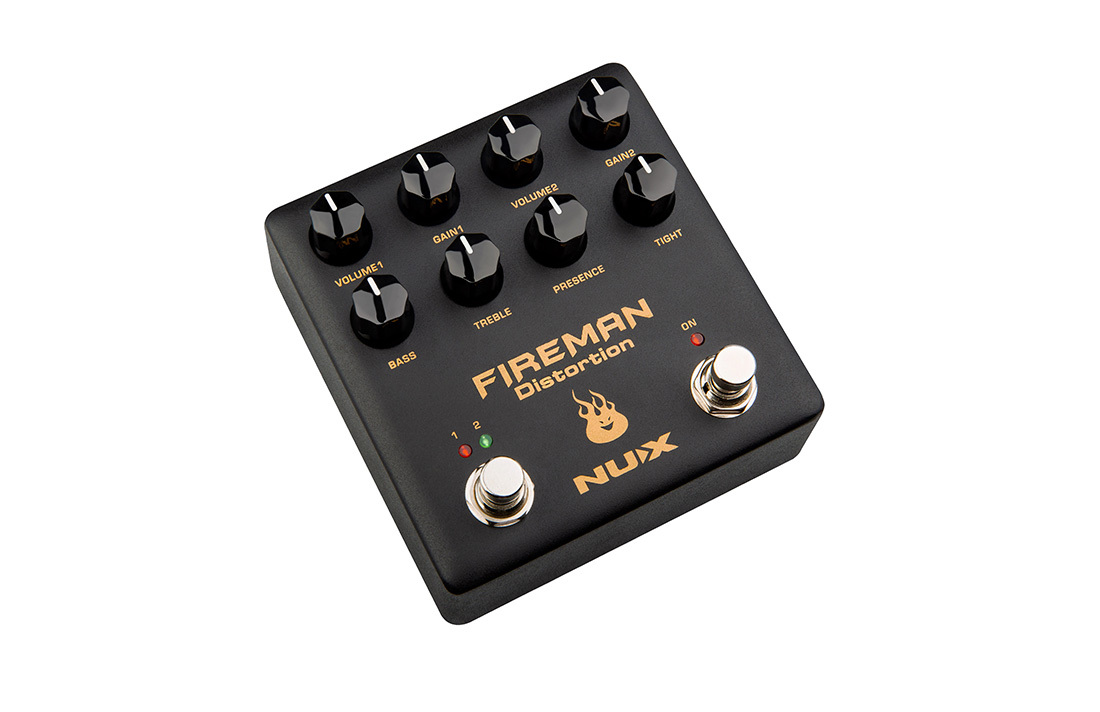

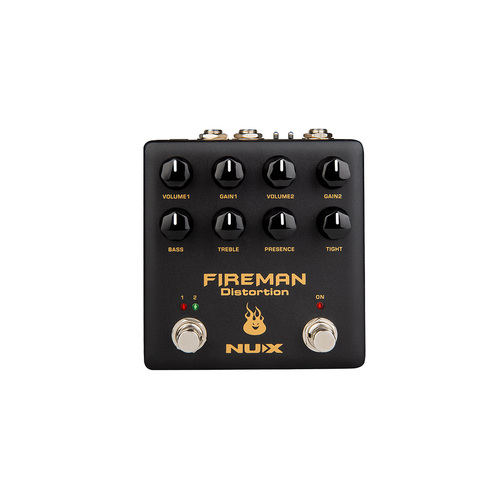

FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch,  and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.

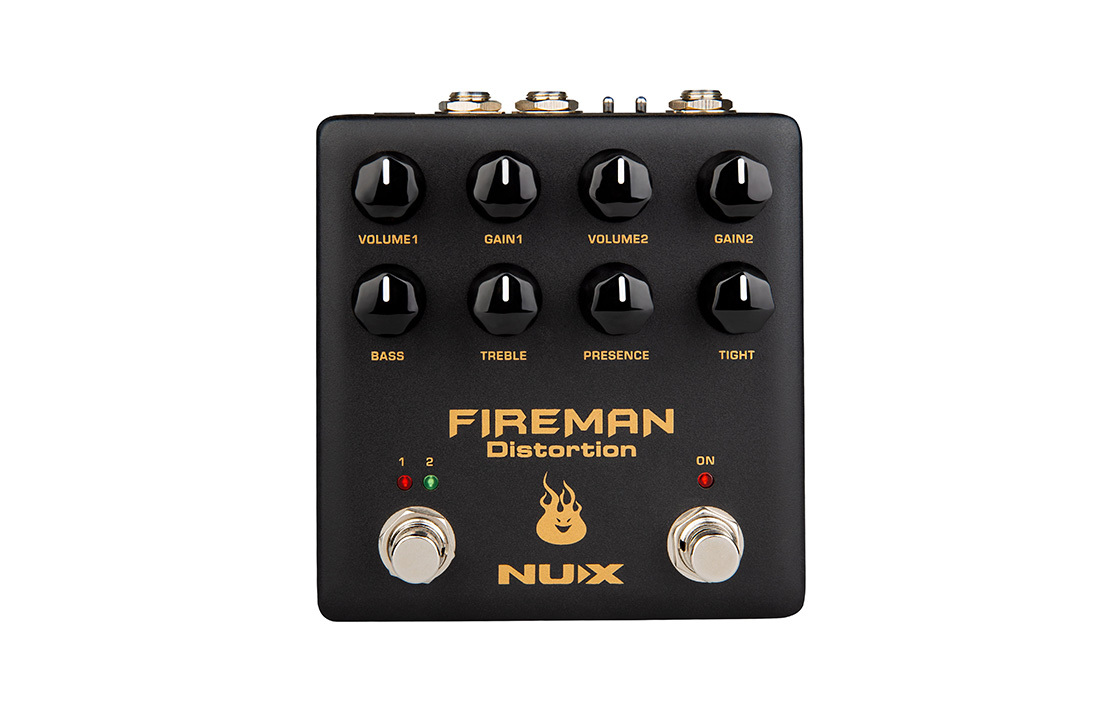

Controls:

BASS: Adjusts the low-end response of distortion sound.

TREBLE: Adjusts the high-end response of distortion sound.

PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.

TIGHT: Shapes the low frequency content. ( Turn it down to tighten the sound.)

VOLUME1: Adjusts the output level while in Channel1.¡¤GAIN1: Adjusts the distortion situation of the sound while in Channel1.

VOLUME2: Adjusts the output level while in Channel2.

GAIN2: Adjusts the distortion range of the sound while in Channel2.

1/2 Foot-switch: Chooses the current Channel for 1 or 2.

ON Foot-switch: Engages or disengages the distortion sound.

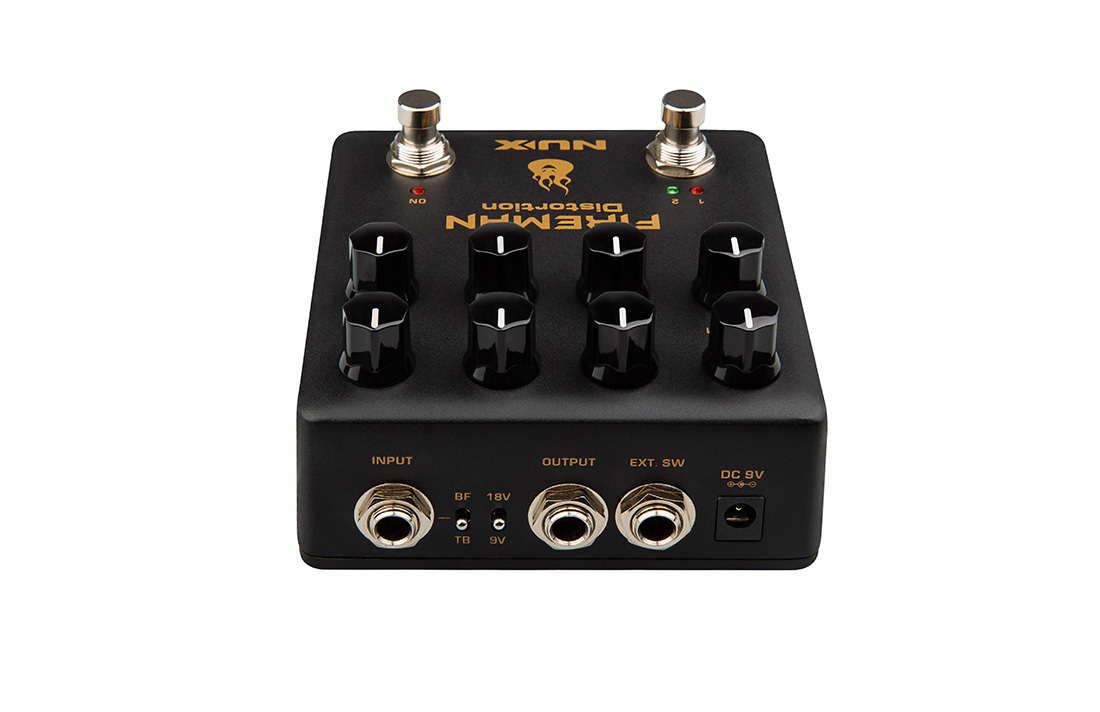

I/O

INPUT: Connects with your guitar or the signal from guitar side.

OUTPUT: Connects with the amplifier or to the amp side.

EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.

BFT/TB Toggle Switch: BF means buffer by-pass, TB means true By-pass

18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.

DC Jack: Connects with 9V Negative Tip power with 100ma adaptor.Highlights

Features:

Modern Brown Sound in a box.

True-bypass / Buffer-bypass toggle switch.

18V / 9V toggle switch to get different dynamic range.

2 independent GAIN, VOLUME knobs for rhythm / solo application.

Specifications:

Frequency Response: 20Hz~20kHz-¡À1dB
Input Impedance: 2.2M¦¸
Output Impedance: 1M¦¸
Power Supply: 9V DC£¬Negative Tip£¨ACD-006A£©
Dimensions: 105(L)¡Á115(W)¡Á58(H)mm
Weight: 460g
