ZOOM LIVETRACK L-20 20 Channel Digital Mixer and Recorder
ZOOM LIVETRACK L-20
Or 4 interest-free payments of $337.25 with Learn more.Sold Out - Backorder Available

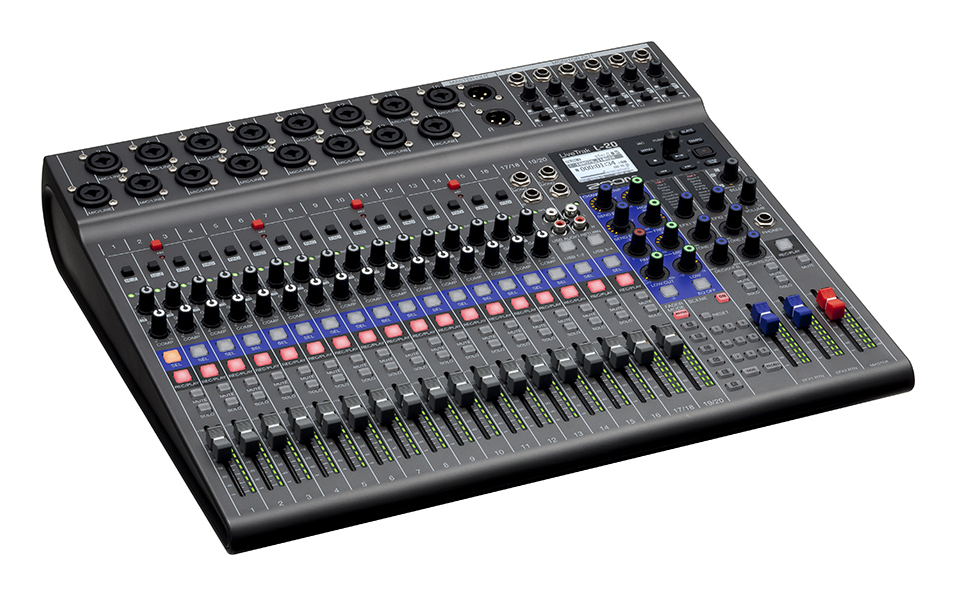

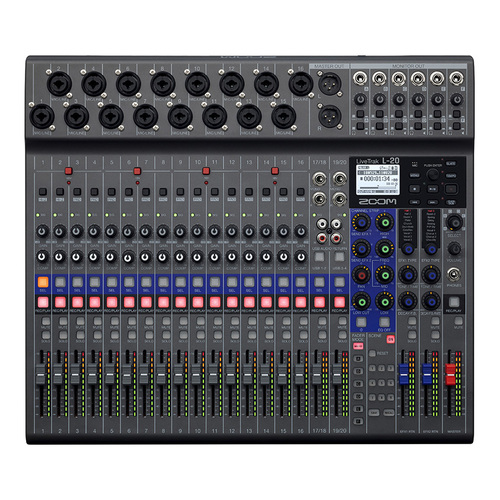

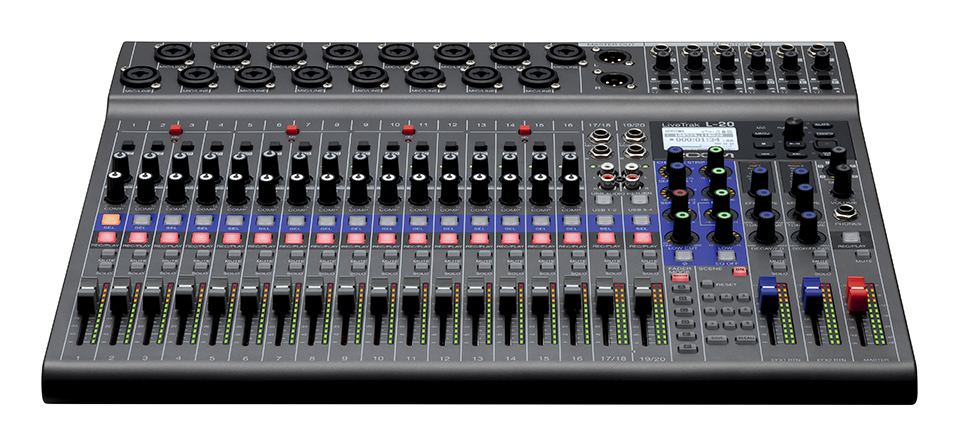

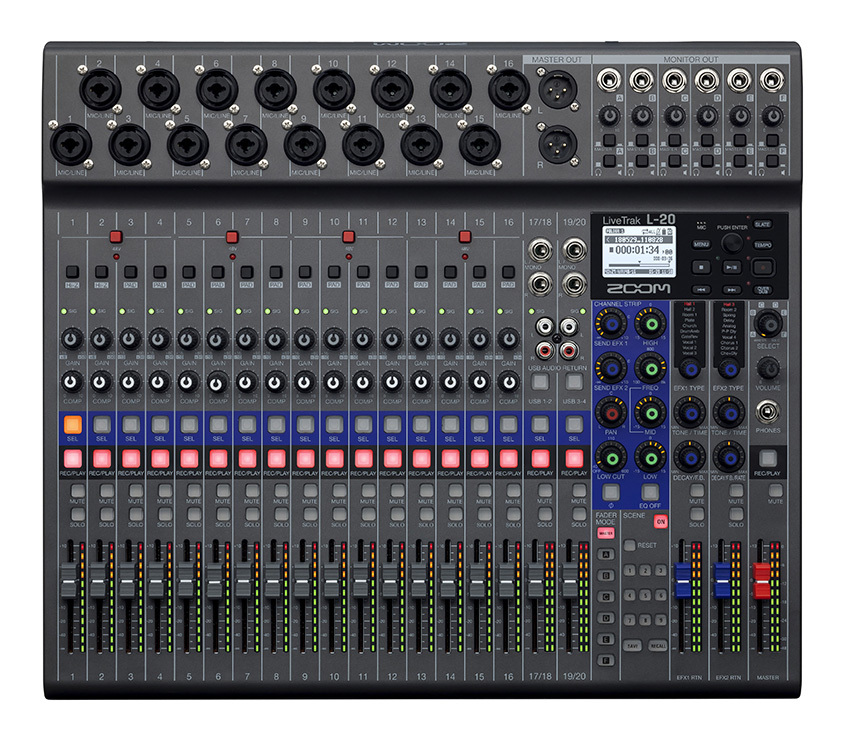

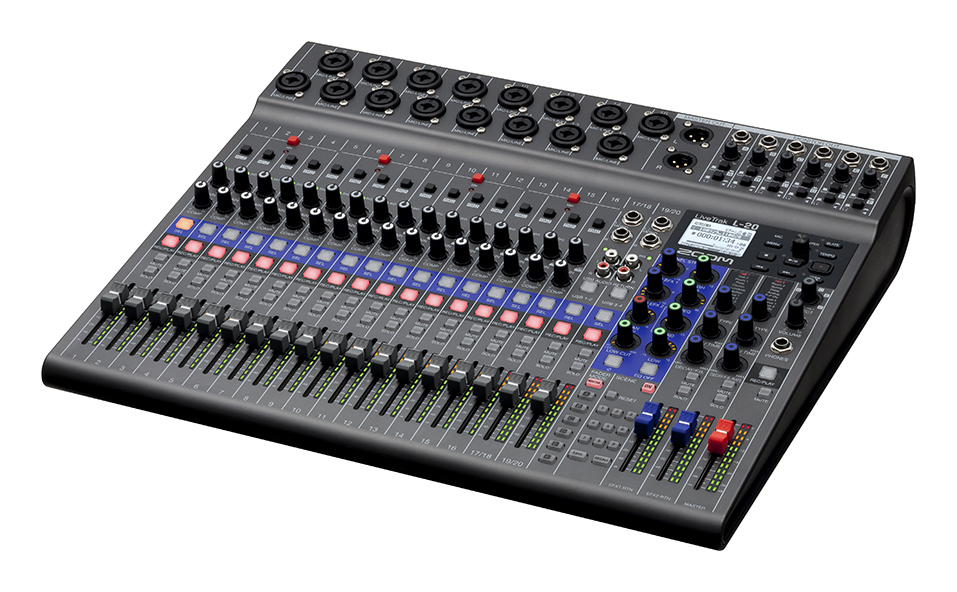

Zoom L20 LiveTrak Digital Console is a highly flexible 20 input digital mixer and multi-track recorder. The LiveTrak L20 makes capturing a rehearsal, producing a quick demo, or creating a great-sounding concert recording easy as its well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4″ inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4″ and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.

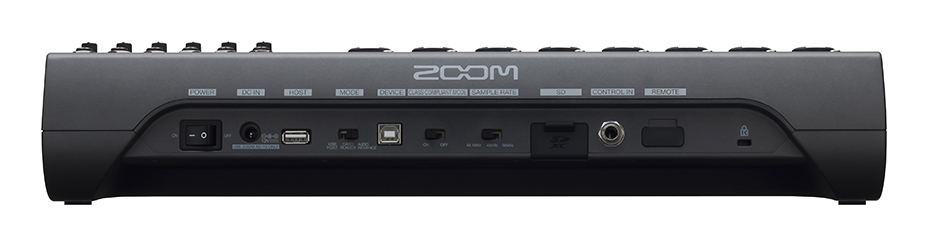

The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4″ connectors, each with the ability to set up customized mixes. Allowing recording on 22 individual channels, with the ability to create custom headphone mixes for up to six band members and craft a polished live mix complete with studio-quality effects. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
Built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes.
