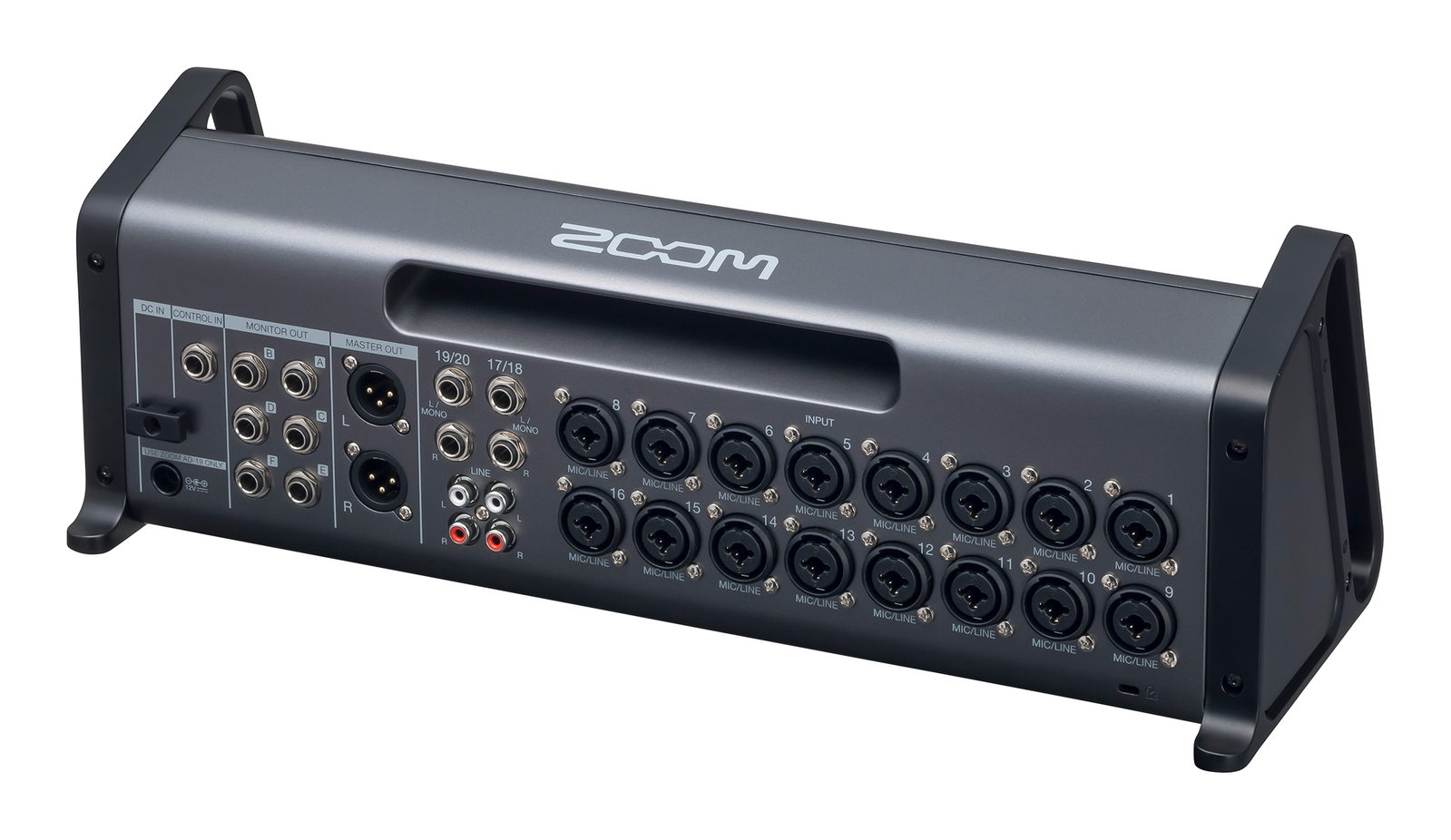

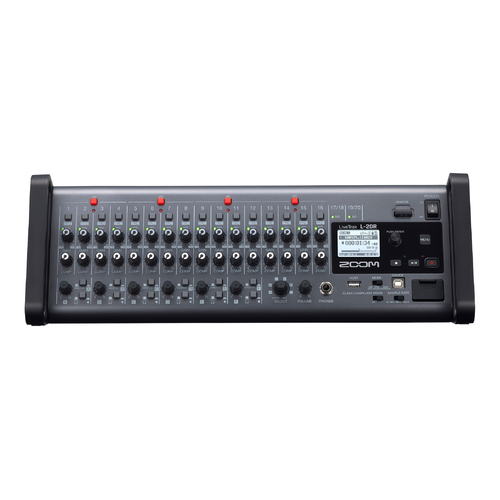

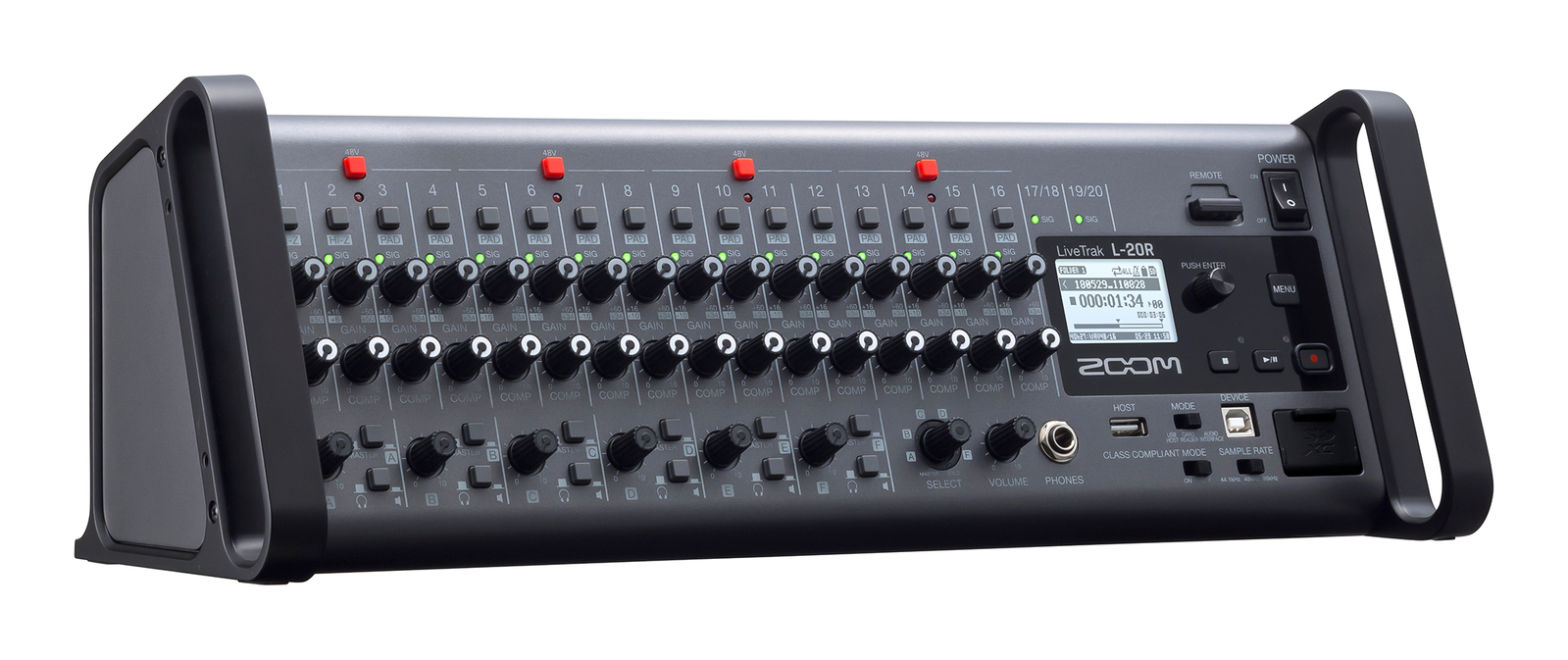

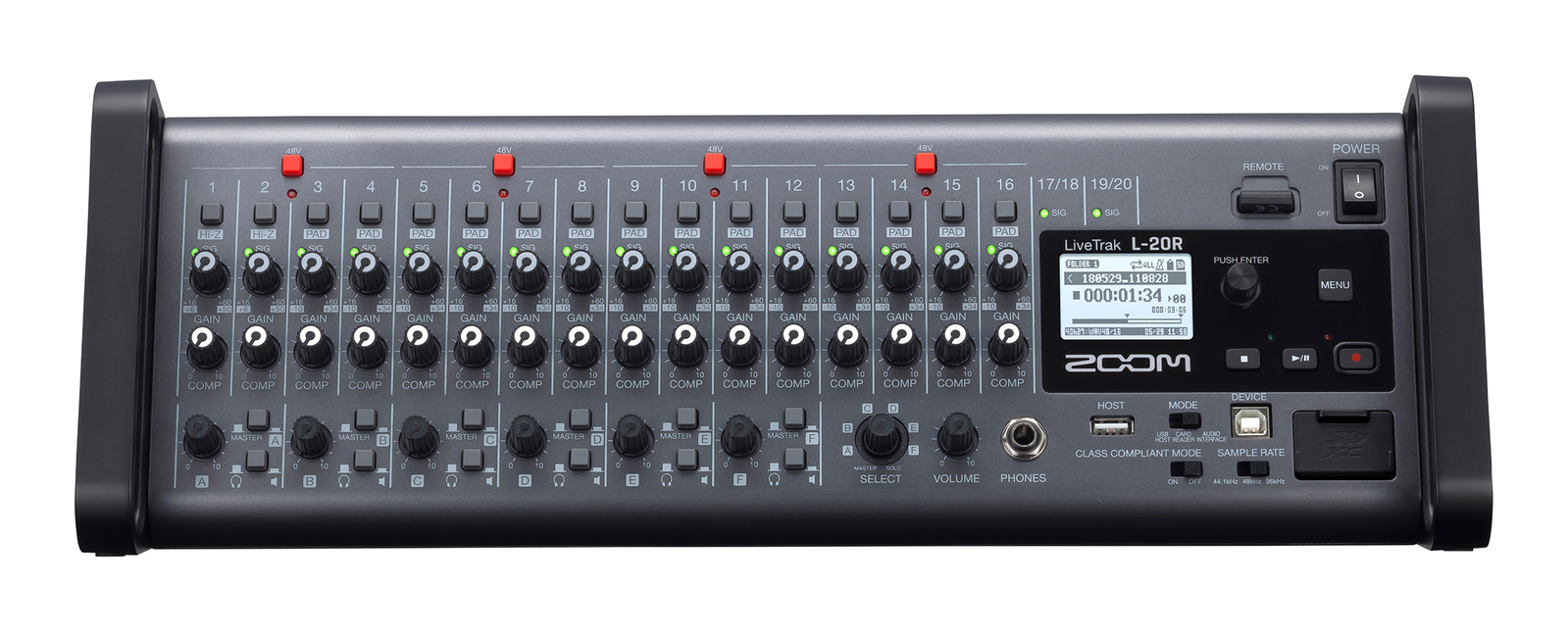

The Zoom LiveTrak™ L-20R is a rack-mountable digital mixer that allows musicians to control their live mix right from the stage with the use of an iPad. With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue. Featuring 16 mono mic/line inputs and two stereo inputs, the L-20R can handle the most demanding stages. The L-20R offers two EFX busses and each channel includes a 3-band EQ, pan controls and compressor. During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.

With six independent monitor outputs, the L-20R enables musicians to create their own custom mix. A dedicated output enables the FOH engineer to easily switch between monitoring the main and sub mixes. Using iPads with L-20 Control app, the FOH engineer and 6 musicians can control their own mix, including fader levels, EQ settings, channel effects, and more from anywhere in the venue.

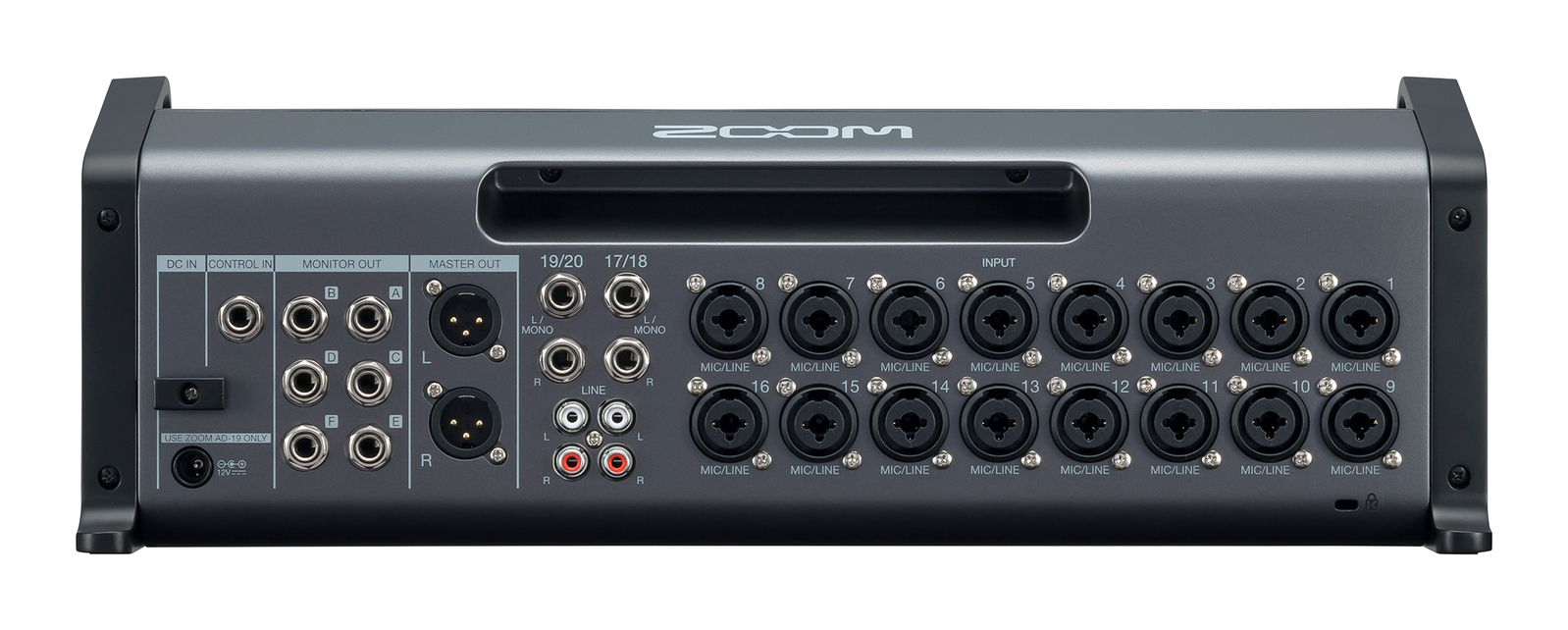

With the LiveTrak L-20R’s Scene Recall feature, you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more. The L-20R’s versatile design provides easy access for plugging in your cables. The L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device (Apple Lightning to USB Camera Adapter required) — even while recording to an SD card.

Features
20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
22-track simultaneous recording, 20-track playback
22-in/4-out USB audio interface connectivity
Records up to 24bit/96kHz audio to SD card
Built-in compression control (Channels 1-16)
Main outputs plus 6 customizable monitor outputs
Dedicated headphone output for sound engineer
Scene saving function, up to 9 scenes saved at a time
20 built-in chorus, delay and reverb effects with adjustable parameters
Compatible with Remote Mixer app for iPad
